HARDWARE CATALOG

Borrow the Tools You Need

3 items

Sort by:

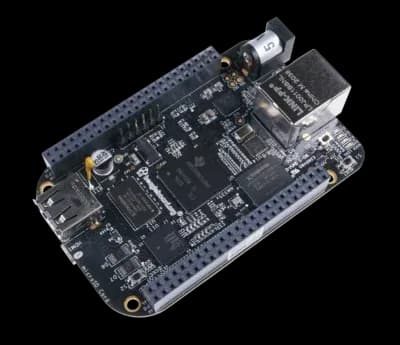

BeagleBone Black
1 of 2 available
Development Boards

BeagleBone Black

BeagleBone® Black is a low-cost, high-expansion, community-supported development platform for developers and hobbyists. Users can boot Linux in under 10 seconds and get started on development in less than 5 minutes with just a single USB cable. Like its predecessors, the BeagleBone® Black is designed to address the Open Source Community, early adopters, and anyone interested in a low cost ARM® Cortex™-A8 based processor.

Processor: Texas Instruments Sitara AM3358 · CPU: 1GHz ARM Cortex-A8 · Graphics: SGX530 3D Graphics Engine · Accelerators: Floating-Point: NEON, PRU: 2x 32-bit 200MHz programmable real-time units · Memory: RAM: 512MB DDR3L 800MHz, Flash: 4GB 8-bit eMMC, Expandable: microSD card slot · Connectivity: Ethernet: 10/100M (RJ45), USB Client: High-speed USB 2.0 (miniUSB), USB Host: USB 2.0 Type-A, 500mA · Video/Audio: HDMI: Type D, LCD: LCD interface via headers, Audio: Stereo over HDMI · Expansion: 2x 46-pin headers (UART, eMMC, ADC, I2C, SPI, PWM) · Debug: UART: 6-pin 3.3V TTL header, JTAG: 20-pin CTI (optional) · Power: 5VDC via miniUSB or DC jack (TPS65217C PMIC)

2 units
Reserve

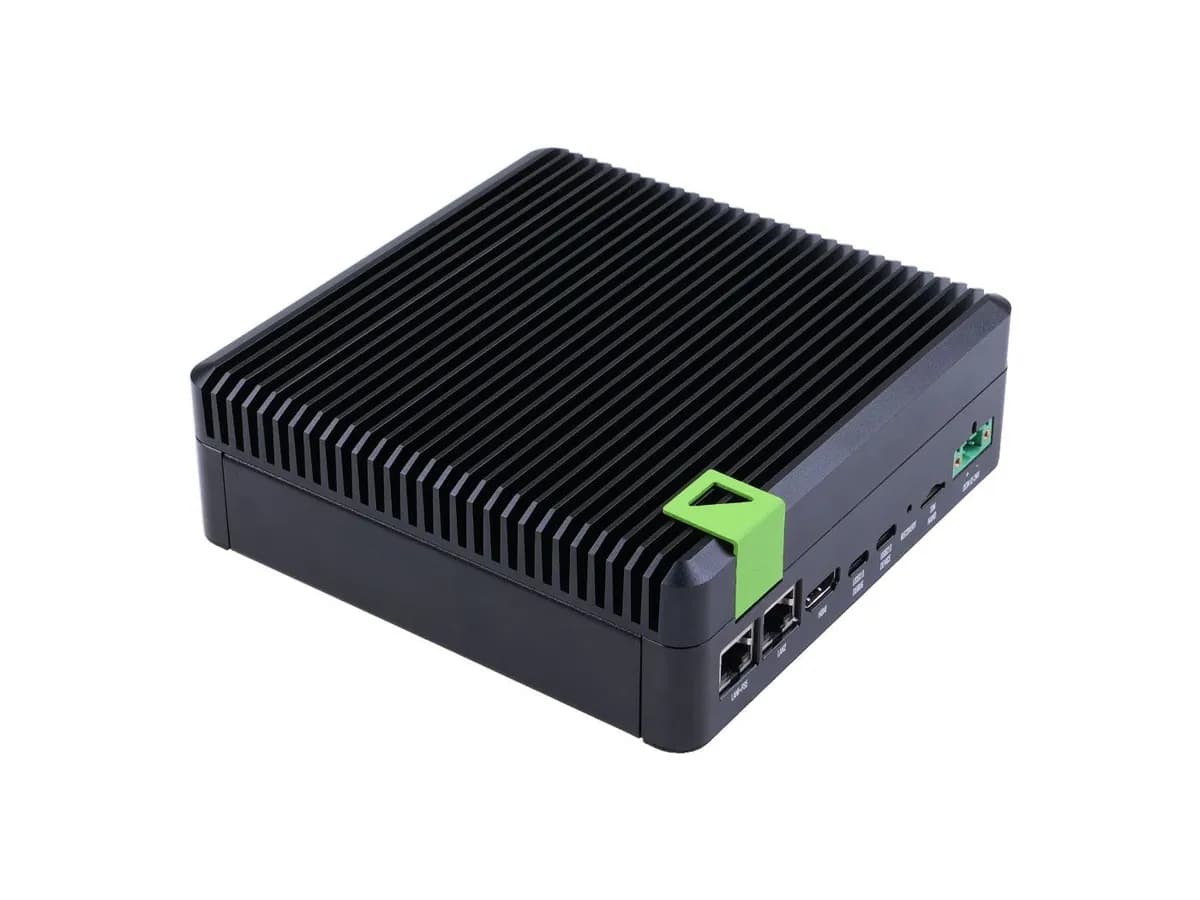

reComputer Industrial J4012 (NVIDIA Jetson Orin NX 16GB)
1 of 1 available
Development Boards

reComputer Industrial J4012 (NVIDIA Jetson Orin NX 16GB)

reComputer Industrial J4012 features NVIDIA Jetson Orin™ NX 16GB module for 100 TOPS AI performance and supports hybrid connectivities including 2 RJ-45 Ethernet ports, 1 RS232/422/485 & CAN port, etc. Fanless with versatile mounting options allows deployment for more harsh environments and heavier loads.

AI Performance: 100 TOPS · GPU: 1024-core NVIDIA Ampere with 32 Tensor Cores · CPU: 8-core ARM Cortex-A78AE v8.2 64-bit · Memory: 16GB 128-bit LPDDR5 · DL Accelerator: 2x NVDLA v2 · Video: Decode: 1x 8K30, 2x 4K60, 4x 4K30, 9x 1080p60, 18x 1080p30 (H.265), Encode: 1x 4K60, 3x 4K30, 6x 1080p60, 12x 1080p30 (H.265) · Storage: M.2 Key M PCIe Gen4.0 (128GB NVMe 2280 included) · Networking: LAN1: RJ45 GbE PoE (PSE 802.3af 15W), LAN2: RJ45 GbE (10/100/1000Mbps), Wi-Fi/BT: SMD (custom production), M.2 Key B: 4G/5G module (optional) · I/O: USB: 3x USB3.2 Gen1, 1x USB2.0 Type-C (device), 1x USB2.0 Type-C (debug/RP2040), DI/DO: 4x DI, 4x DO, 1x CAN, COM: 1x DB9 (RS232/RS422/RS485), Display: 1x HDMI 2.0 Type A, Camera: 2x CSI (2-lane 15-pin), SIM: 1x Nano SIM slot · Power: Input: DC 12-24V (2-pin terminal block), Adapter: 19V (cord not included) · Cooling: Fanless passive heatsink (1x 5V PWM fan connector) · Mechanical: Dimensions: 159 x 155 x 57mm, Weight: 1.57kg, Mounting: Desk, DIN rail, wall, VESA · Environment: Temperature: -20 to 60°C (0.7m/s airflow), Humidity: 95% @ 40°C (non-condensing), Vibration: 3 Grms @ 5-500Hz, Shock: 50G peak (11ms), IP Rating: IP40 · Security: TPM 2.0 connector (module optional) · Warranty: 2 years

1 unit
Reserve

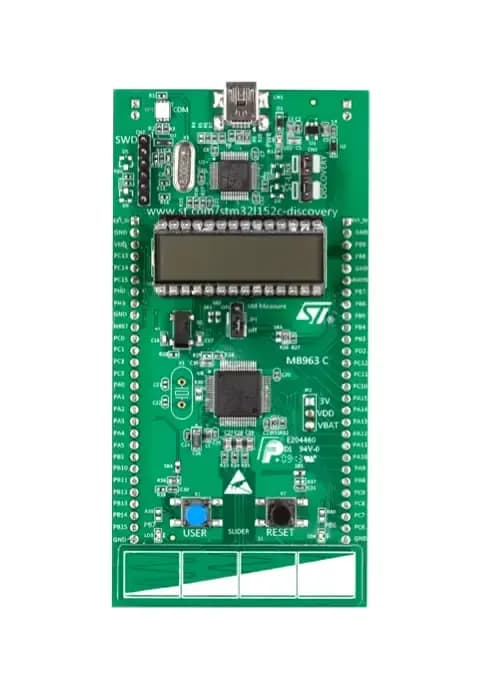

STM32L152C-DISCO
3 of 3 available
Development Boards

STM32L152C-DISCO

The 32L152CDISCOVERY Discovery kit helps the development of applications based on the STM32L1 Series microcontrollers and benefit from the ultra-low-power features of these devices. Based on the STM32L152RC microcontroller, this Discovery kit includes an ST-LINK/V2 embedded debugging tool interface, a 24‑segment 4‑common LCD, LEDs, push-buttons, a linear touch sensor, and touchkeys.

MCU: STM32L152RC (LQFP64) · Core: ARM Cortex-M3 · Memory: Flash: 256KB, RAM: 32KB, Data EEPROM: 8KB · Display: 24-segment 4-common LCD (DIP28) · LEDs: LD1: Red/green (USB communication), LD2: Red (3.3V power-on), LD3: Green (user), LD4: Blue (user) · Buttons: User and reset push-buttons · Touch: 1 linear sensor + 4 touchkeys · Connectors: Debug: SWD (Serial Wire Debug), Extension: LQFP64 I/O header for prototyping · Power: Sources: ST-LINK USB VBUS or external, External: 3V and 5V, Measurement: IDD current measurement · Debugger: On-board ST-LINK/V2 (Virtual COM port + debug)

3 units
Reserve
